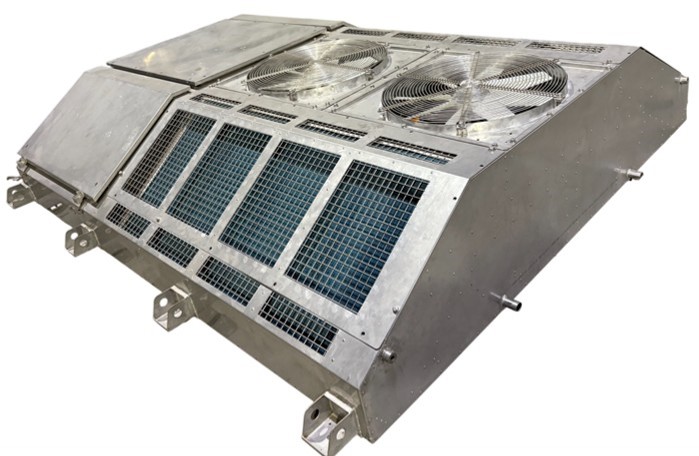

VANDE BHARAT – SALOON – CHAIR CAR - 8 TR / 28.1 KW
Basic Technical Parameters
Sr.No.
Parameters
Electrical Requirement
1
Power Supply
3 Phase, 415 V ±10%, 50 Hz ±2.5%
2
Power Consumption
16.5* kVA
Capacity
1
Cooling Capacity
28.1 kW/8 Tr
2
Heating Capacity
9.0 kW
Constructional Requirement
1
Design to Ambient (Cooling)
50°C
2
Max Operating Temperature
55°C
3
Dimension (LxWxH)
2565 x 2100 x 545 mm
4
Material for Housing
SS
5
Noise Level(Inside the Coach)
65 dB as per EN 14750
6
Controller
Microprocessor Controller as per RDSO Spec. No.: RDSO/PE/SPEC/EMU/0196 - 2019 (Rev.0)
7
Refrigrant
R-407C
8
Weight
630±5% kg approx.
Service condition
1
Ambient
-10 to 55°C
2
Max. Temp. inside coach Under Sun
70°C
3
Design Speed / Operational Speed
200 Km/h / 160 Km/h
4
Relative Humidity
Up to 100%
5
Atmosphere
Extremly dusty & desert weather
6
Shock & Vibration Standard
IEC 61373
| Basic Technical Parameters | ||
|---|---|---|
| Sr.No. | Parameters | |
| Electrical Requirement | ||
| 1 | Power Supply | 3 Phase, 415 V ±10%, 50 Hz ±2.5% |
| 2 | Power Consumption | 16.5* kVA |
| Capacity | ||
| 1 | Cooling Capacity | 28.1 kW/8 Tr |
| 2 | Heating Capacity | 9.0 kW |
| Constructional Requirement | ||
| 1 | Design to Ambient (Cooling) | 50°C |
| 2 | Max Operating Temperature | 55°C |
| 3 | Dimension (LxWxH) | 2565 x 2100 x 545 mm |
| 4 | Material for Housing | SS |
| 5 | Noise Level(Inside the Coach) | 65 dB as per EN 14750 |
| 6 | Controller | Microprocessor Controller as per RDSO Spec. No.: RDSO/PE/SPEC/EMU/0196 - 2019 (Rev.0) |
| 7 | Refrigrant | R-407C |
| 8 | Weight | 630±5% kg approx. |
| Service condition | ||
| 1 | Ambient | -10 to 55°C |
| 2 | Max. Temp. inside coach Under Sun | 70°C |
| 3 | Design Speed / Operational Speed | 200 Km/h / 160 Km/h |
| 4 | Relative Humidity | Up to 100% |
| 5 | Atmosphere | Extremly dusty & desert weather |
| 6 | Shock & Vibration Standard | IEC 61373 |
